Product Info
ZSE SERIES
With its large work area and premium feature list, Zetalase™ can do it all.

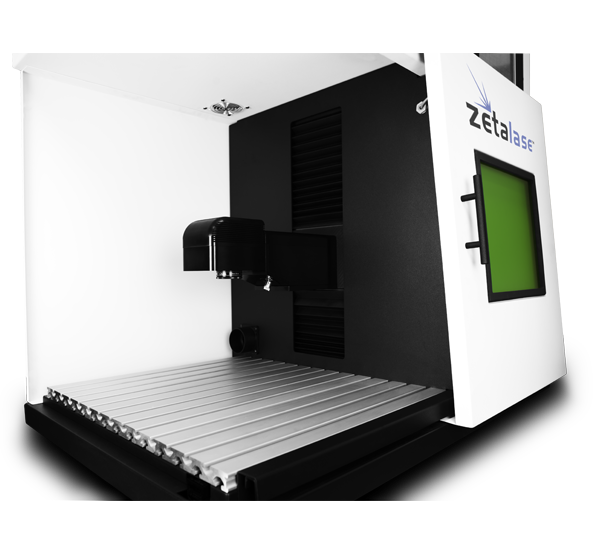

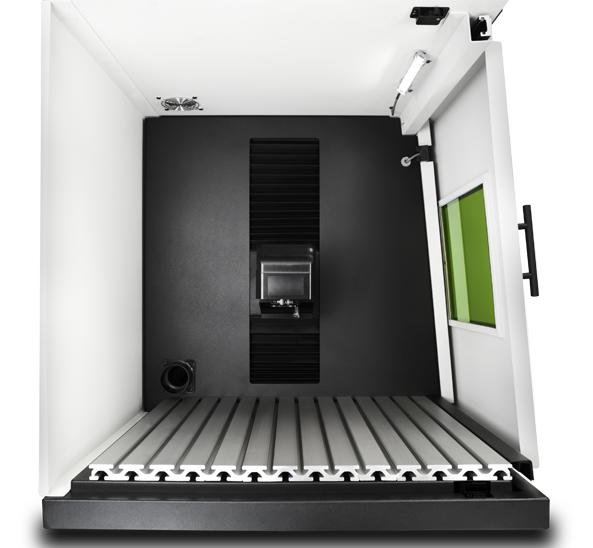

An expansive work envelope provides capability for marking a wide array of parts, large or small, light or heavy. In addition to the front sliding operator door, the side access door provides operators 180° access to the expansive 18” x 24” part loading area.

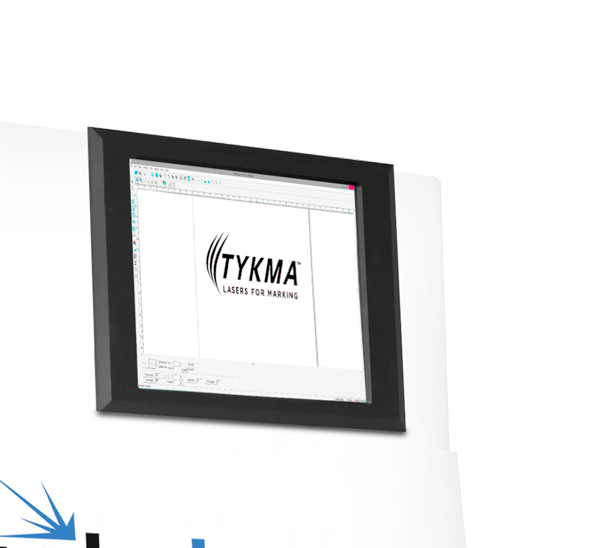

Zetalase™ features an onboard processor and a 10” touch screen monitor. Our touch interface software allows operators to quickly and easily select and edit pre-configured marking programs
on the fly.

Programming with our Minilase™ Pro SE software enables you to easily mark text, barcodes, serial and date codes, graphics and more.

Utilize our full-size rotary device for 360° radial part marking. Upgrade to an automatic part loading door or programmable focal height to increase operator ergonomics.

System Features

Technical Specifications

System Dimensions / Weight 40″W x 26″L x 35″H / 306lbs
Standard Marking Field 160S (100mm x 100mm)
(3.93″ x 3.93″)
Standard Max Part Size
(160S Lens)
24″W x 18″L x 9.625″H
(mm) 609W x 457L x 244H
Available Marking Lens
Upgrade and Marking Fields
254S (140mm x 140mm, 5.5″ x 5.5″)
254L (165mm x 165mm, 6.5″ x 6.5″)
Maximum Part Height
with Lens Upgrade
(254S) 5.625″/142mm
(254L) 2.5″/63.5mm
Laser Type Ytterbium Fiber
Wavelength (nm) 1062 +/- 3nm
Wattage 10W / 20W / 30W / 50W
Frequency Range 1kHz – 500kHz (10/20/50W) | 1kHz-1,000kHz
Pulse Duration Selectable, 260ns or 40ns
Operative Ambient Temperature Range 45° F to 110° F
Cooling Air Cooled
Input Power Power Sensing 110-240VAC 50/60Hz
Aiming Beam (2) Class II Red Diode (635nm))
PC Integrated Windows PC w/10” Touch Screen
Monitor
Available Ports  Diagnostic/USB/VGA/Ethernet
Warranty 36 Month Comprehensive Unlimited Hours
Documentation

USB Drive / Quick Start Guide
Video Tutorials / Software Manual
Safety Manual / Laser Settings Manual
(All Manuals Provided in Digital Copy)
