TYKMA Electrox Minilase XL Laser Marking System

TYKMA Electrox Minilase XL MXL-Front-Angle-View TYKMA Electrox Minilase XL MXL-Front-Angle-Door-Open TYKMA Electrox Minilase XL MXL-Class-4-Marking TYKMA Electrox Minilase XL Aiming-Beam-Alignment

Product Info

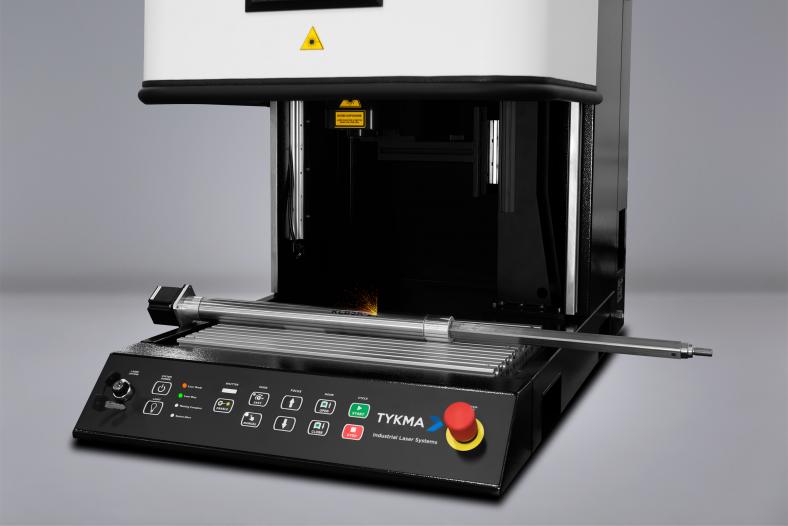

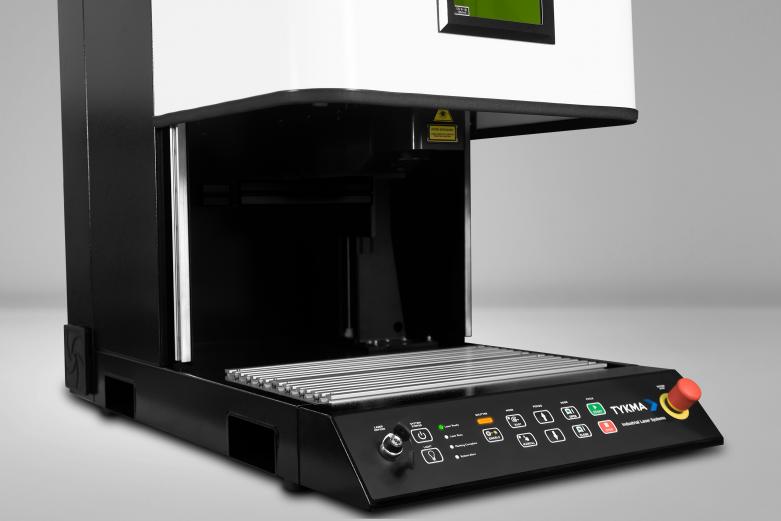

Minilase™ XL offers a larger workspace and an open interior for maximum flexibility in a desktop solution. In addition, Minilase™ XL is equipped with our ergonomic features such as the three side pneumatic vertical door, power focal height adjustment and auto-mode for high volume applications. A service override key and safety warning lights allow for open door Class 4 marking capability for larger components.

Auto mode allows for the automated sequence of door close, marking and door open, maximizing operator ergonomics. Upgrade to programmable focal height adjustment for automatic focal change between parts.

Our systems save you operating costs in the long run over obsolete and larger scale laser marking systems. Minilase™ XL is air cooled, maintenance-free and includes a comprehensive three year warranty.

Technical Specifications

System Dimensions

24”W x 42.5”L x 33.5”H / 200lbs
(mm) 610W x 1,079L x 851H / 91kg
Standard Marking Field

160S (100mm x 100mm) (3.93” x 3.93”)
Standard Max Part Size

20”W x 12.5”L x 14.3”H
(mm) 508W x 317L x 365H

Using rear cabinet space
11”W x 27”L x 14.3”H
(mm) 279W x 685L x 365H
Available Marking Lens Upgrade and Marking Field

254S (5.5” x 5.5”, 140mm x 140mm)
254L (6.5” x 6.5”, 165mm x 165mm)
350L (7.87” x 7.87”, 200mm x 200mm)
Maximum Part Height with Lens Upgrade

(254S) 11.2”/285mm
(254L) 8.3”/212mm
(350L) 4”/101mm

Laser Type

Ytterbium Fiber
Wavelength (nm)  1062nm+/-3nm
Wattage 20W / 50W / 70W
Frequency Range 1 – 500kHz
Pulse Duration

Selectable, 260ns or 40ns
Operative Ambient Temperature Range 7 – 40° C /  45 – 104° F
Cooling Air Cooled
Fiber Cable Length N/A
Input Power Power Sensing 110-240VAC 50/60Hz

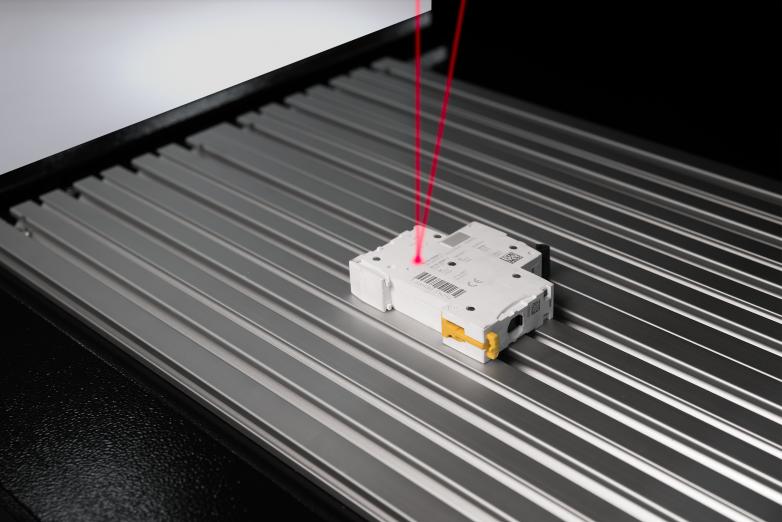

Aiming Beam (2) Class II Red Diode (635nm)
PC Laptop/Desktop PC Required
(Not Included)
PC Connection USB
Air Required 60 – 80 psi
Available Ports Diagnostic
Warranty 36 Month Comprehensive, Unlimited Hours
Documentation



(Provided in Digital Format via USB Drive)

System & Software Manuals
Laser Settings Guide / Safety Manual
Video Tutorials
Included Accessories

Laser Enable Keys (2) / USB Cable
Power Cable / USB Drive
Class 4 Service Override Key

Accessories
Downloads
Download TYKMA Electrox Minilase XL Brochure


Please contact us for more information.
