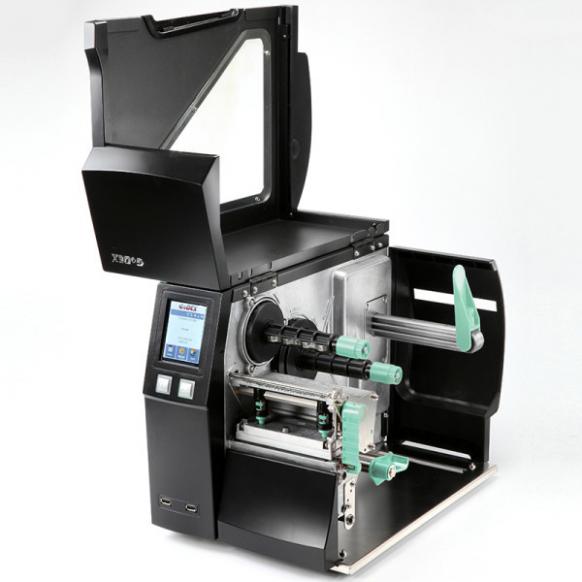

Godex ZX1200i / ZX1300i / ZX1600i Industrial Barcode Label Printers

Godex ZX1200i / ZX1300i / ZX1600i Industrial Barcode Label PrintersGodex ZX1200i / ZX1300i / ZX1600i Industrial Barcode Label PrintersGodex ZX1200i / ZX1300i / ZX1600i Industrial Barcode Label Printers
Amazing combination of power and precision

Various standard interfaces facilitate integration into several environments. Compact and robust steel design will fulfill your most demanding applications.

Specs

Print method
Thermal Transfer / Direct Thermal

Resolution
203 dpi (8 dots/mm) / 300 dpi (12 dot/mm) / 600 dpi (24 dot/mm)

Print speed
10 ips (254mm/s) / 7 ips (177 mm/s) / 4 ips (102 mm/s)

Print width
4.09” (104mm) Up to (108mm) / 4.09” (104mm) Up to (105.7mm) / 4.09” (104mm) Up to (105.6mm)

Print length
Min. 0.16” (4 mm)** ; Max . 180” (4572mm) / Min. 0.16” (4 mm)** ; Max. 85“(2159 mm) / Min. 0.16” (4 mm)** ; Max. 26“(660 mm)

Processor
32-bit RISC CPU

Memory
Flash: 128 MB Flash (60 MB for user storage), SDRAM : 32 MB

Interfaces
• USB 2.0 (B-Type) • Serial Port • Ethernet port (RJ-45) • 3 x USB Host (Type A)

Ribbon
Length Max. 1476’ (450 m) Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm) Core diameter 1” (25.4 mm)

Control Panel
• Backlight 3.2” touch screen LCD • 1 Power on/off button with green color LED backlight • 1 Control


Please contact us for more information.
