Chauvin Arnoux CA 6555 15 kV Insulation Tester
Description

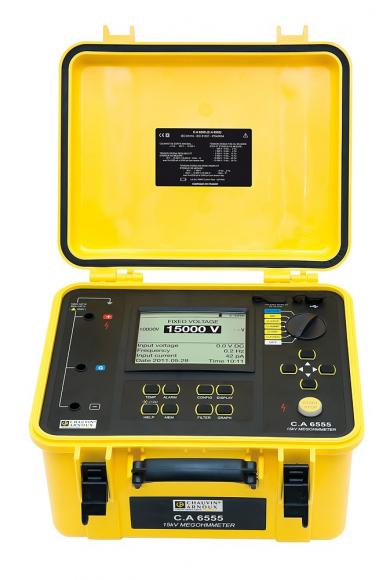

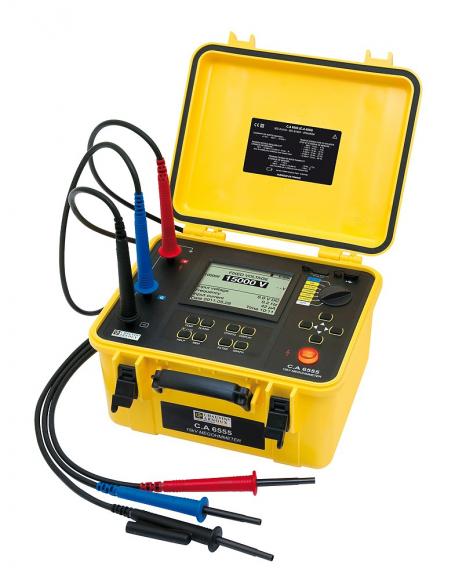

15,000 V insulation tester
With its site-proof casing, the C.A 6555 insulation tester is used to check equipment insulation during manufacturing, on-site installation work, periodic inspections and recommissioning of installations.
They are ideal for electricity companies, manufacturers, installers, maintenance firms, industry, R&D centres and infrastructure.
Specially adapted for checking insulation on rotating machinery with a 12 kV power supply or higher, the C.A 6550 complies with the IEEE43standard which recommends testing insulation at 5-10 kV.
Functions and specifications:- Wide measurement range from 10 kΩ to 25 TΩ
- Fixed or programmable test voltage from 40V to 15 kV
- 5mA max. charging current

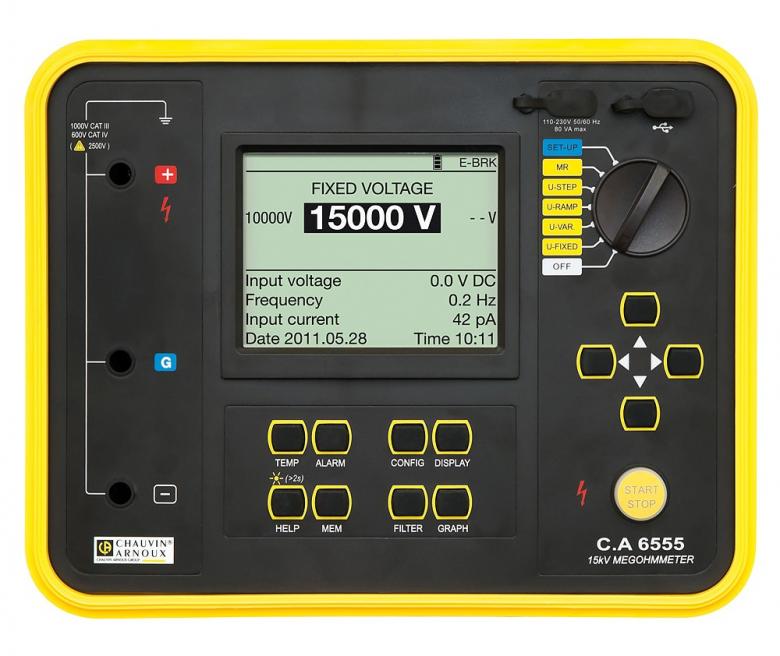

- Large backlit LCD screen with digital display, bargraph and R(t)+u(t), i(t) and i(u) graphs
- Automatic ratio calculation: DAR / PI / DD / DR (ppm/V)
- Multiple test modes: voltage ramp and step with "burning", "early break" and "I-limit" modes
- 3 filters to optimize measurement stability
- Calculation of R at a reference temperature
- 80,000-measurement storage capacity and real-time clock
- Optically-isolated USB communication for transfer onto PC and report generation with DataView® software
- Power supply NiMH rechargeable battery with external charger
- Compliant with IEC 61557 -1 -2
- Electrical safety: IEC 61010 1000V CAT IV
- Dimensions: 406 x 330 x 174 mm / 6 kg
REFERENCES
CA 6555 MEGOHMMETRE 15kV

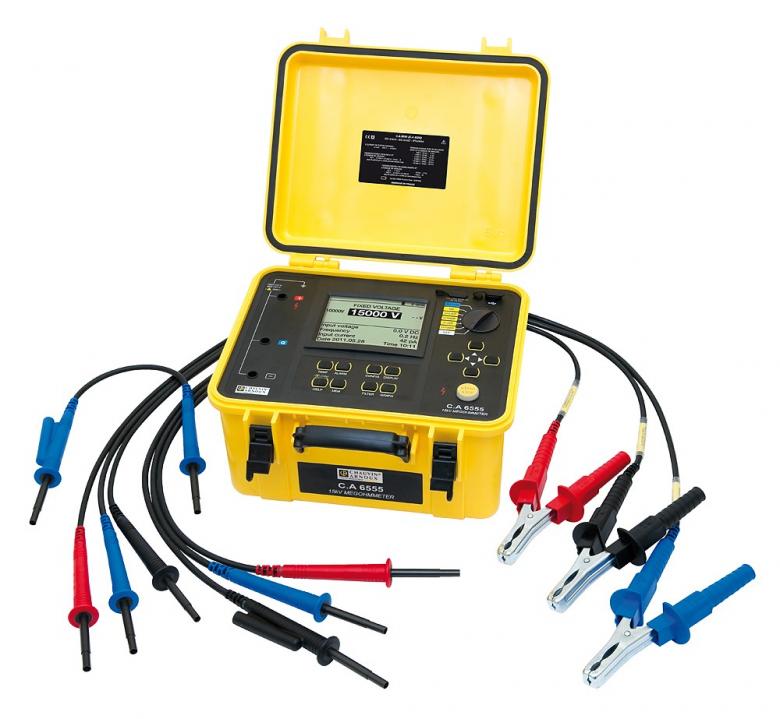

Moulded test probes CAT 4 1 kV RD/BK
Standard Carrying Bag 380x280x200
C.A 1821 TC THERMOMETER 1 INPUT K J T E N R S
3 Croc clips kit RED/BLUE /BLACK
Mains lead 2P EUR.
SUPPORT
Megohmmeter Transfer software
The Megohmmeter Transfer software can be used to control the C.A 6543, C.A 6547, C.A 6549, C.A 6550, C.A 6555 and the new 1kV megohmmeters C.A 6526, C.A 6532 and C.A 6534.Megohmmeter Transfer is a tool for:
- Configuring the instruments,- Downloading and viewing the data stored in the memory and then saving them (creation of a *.icp file)- Performing instantaneous acquisition operations,- Exporting the measurement data into DATAVIEW (*.dvb) files or an Excel spreadsheet (*.csv or *.xls files)
Caution: Dataview is not supplied with this version of MEGOHMMETER Transfer
DataView software
DataView is a powerful tool for configuration, transfer and processing of measurement data for an extensive range of Chauvin Arnoux measuring instruments. The DataView Suite groups the DataView report editor and the PEL Transfer, PAT, PAT2, Data Logger, GTC, GTT, ICT, DTR, SLII MEG and MOT application software. For the download, a software key will be requested. this key is attached to the CDrom you received following the DataView software purchase.DataView v3.62.0016
Compatible instruments :PEL 102, PEL 103, PEL 104, PEL 105, PEL 106 power and energy loggers;
F407 and F607 power and harmonics clamps;
C.A 8220 and 8230 single-phase power analysers;
Qualistar C.A 8331,8332, 8333,8334, 8335, 8435, 8436, 8336 and 8345;
C.A 6526, 6532, 6534, 6543, 6547, 6549, 6550 and 6555 megohmmeters;
C.A 6240, 6250, 6255 and 6292 micro-ohmmeters;
C.A 6470N, 6471 and 6472 earth testers;
C.A 6417 earth clamp;
DTR 8510 ratiometer for transformers;
Simple Logger II and L452;
C.A 1110, 1227, 1246, 1821, 1822, 1510,1823, 10101, 10141 physical measurement devices;
C.A 6116, 6116N and 6117 electrical installation testers
Languages
DataView is available in the following languages: German, English, Chinese, Spanish, French, Italian, Dutch, Polish, Swedish, Czech and Turkish
Please contact us for more information.
