TSC ML240 Series Industrial Thermal Transfer Barcode and Label Printers
ML240 Series (ML240, ML340, ML240P, ML340P)
Up to 152 mm (6") per second print speed
Intuitive 2.3" color LCD with 6-button menus (ML240P/ ML340P)
Available in 203 dpi and 300 dpi resolutions
8 MB Flash and 16 MB SDRAM memory (ML240/ML340), 128 MB Flash and 64 MB SDRAM memory (ML240P/ML340P)
450 meter ribbon capacity
TSPL-EZD firmware for plug-n-play ease
Overview

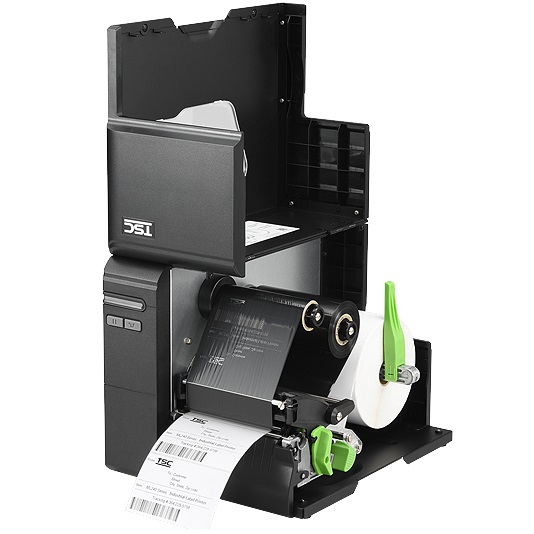

The TSC ML240 Series is a brand new generation of smaller industrial barcode label printers that are designed to fit into more work areas than ever before. The ML240 Series features a compact footprint, durable and flexible design, ease of use, noise-reduced printing, self-diagnostic TPH Care and tool-less maintenance. The ML240 Series is available in 203 and 300 dpi print resolutions. The printer incorporates a robust die-cast aluminum print mechanism engine that is ideal for light industrial duty printing.
Streamlined and Small Footprint Design
Compared to our bestselling TSC ME240 Series, the ML240 Series is 34% smaller. Compared to TSC TTP-244M Pro Series, the ML240 Series is 23% smaller. The small footprint design saves more space and fits in limited operation areas.
Robust and Agile Design for Optimal Quality
The combination of rugged die cast, modularized base and adjustable TPH module design structure optimizes print quality.
Engineered to Reduce Noise from Printing
The ML240 is engineered for minimal noise production during printing operation.
Self-Diagnostic TPH Care Mechanism
The ML240 Series incorporates an advanced mechanism allowing for real-time printhead health status detection. It can stop printing errors to ensure stable and high quality printouts. Not having to reprint labels reduces cost and eliminates supplies waste.
Effortless User Operation with Color Display
The ML240 Series has a user friendly design providing a wide open angle for easy media handling. It's ease of use 2.3" color GUI display and real-time LED indicator is designed to be intuitive making printer operation effortless.
One Step Maintenance
No tools are required to remove and replace both the printhead and platen roller, saving time for more important tasks.
APPLICATIONS
- Warehouse & Logistics
- Packing
- Order Fulfilment
- Shipping/Receiving
- Inventory Management
- Manufacturing
- Work In Process
- Product Marking
- Compliance Labeling
- Healthcare
- Blood Test Tube Label
- Patient Wristband Label
- Retail
- Product Label
- Event Ticketing
Key Specification
| Model |
ML240  |
ML340 |
ML240P  |
ML340P |
| Resolution | 8 dots/mm (203 DPI) | 12 dots/mm (300 DPI) | 8 dots/mm (203 DPI) | 12 dots/mm (300 DPI) |
| Max. print speed | 152 mm (6)/second | 127 mm (5")/second | 152 mm (6)/second | 127 mm (5)/second |
| Max. print width | 108 mm (4.25") | 105.7mm(4.16) | 108 mm (4.25") | 105.7mm (4.16) |
| Max. print length | 2,794 mm (110") | 1,016 mm (40") | 25,400 mm (1,000") | 11,430 mm (450") |
| LCD/LED | 1 status indicator | 1 status indicator | 2.3" color LCD 1 status indicator |
2.3" color LCD 1 status indicator |
